Friday, 5 December 2008

Send-UDPDatagram.ps1

  1. <#
  2. .SYNOPSIS
  3.     Sends a UDP datagram to a port
  4. .DESCRIPTION
  5.     This script used system.net.socckets to send a UDP
  6.     datagram to a particular port. Being UDP, there's
  7.     no way to determine if the UDP datagram actually
  8.     was received.
  9.     for this sample, a port was chosen (20000).
  10. .NOTES
  11.     File Name  : Send-UDPDatagram
  12.     Author     : Thomas Lee - tfl@psp.co.uk
  13.     Requires   : PowerShell V2 CTP3
  14. .LINK
  15.     http://www.pshscripts.blogspot.com
  16. .EXAMPLE
  17. #>
  18.
  19. ###
  20. #  Start of Script
  21. ##
  22.
  23. # Define port and target IP address
  24. # Random here!
  25. [int] $Port = 20000
  26. $IP = "10.10.1.100"
  27. $Address = [system.net.IPAddress]::Parse($IP
  28.
  29. # Create IP Endpoint
  30. $End = New-Object System.Net.IPEndPoint $address, $port
  31.
  32. # Create Socket
  33. $Saddrf   = [System.Net.Sockets.AddressFamily]::InterNetwork
  34. $Stype    = [System.Net.Sockets.SocketType]::Dgram
  35. $Ptype    = [System.Net.Sockets.ProtocolType]::UDP
  36. $Sock     = New-Object System.Net.Sockets.Socket $saddrf, $stype, $ptype
  37. $Sock.TTL = 26
  38.
  39. # Connect to socket
  40. $sock.Connect($end
  41.
  42. # Create encoded buffer
  43. $Enc     = [System.Text.Encoding]::ASCII
  44. $Message = "Jerry Garcia Rocks`n"*10
  45. $Buffer  = $Enc.GetBytes($Message
  46.
  47. # Send the buffer
  48. $Sent   = $Sock.Send($Buffer
  49. "{0} characters sent to: {1} " -f $Sent,$IP
  50. "Message is:"
  51. $Message
  52. # End of Script

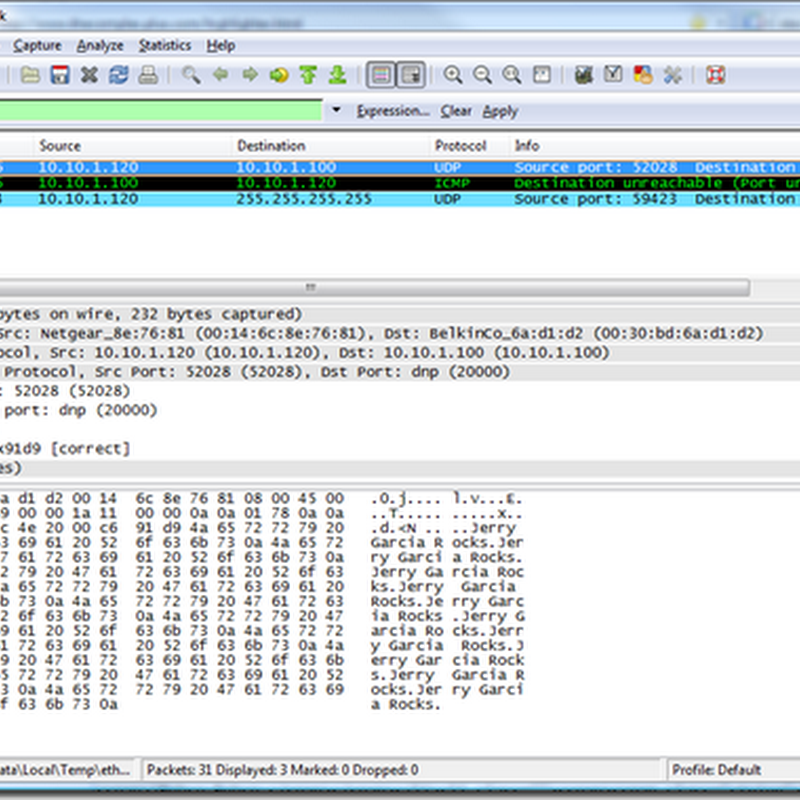

If you run this script and are using WireShark to capture the network traffic, you might see something like this:


From this trace, you can see the UDP Datagram that was sent. And since the port does not exist on the target machine (10.10.1.100), that machine returns a Destination Port Unreachable as expected.

2 comments:

brettski said...

Lines 38 - 52 are covered up with the Wireshark image. Can you fix the layout so we can see the rest of the script?

Meik Specht said...

too bad the website owner doesn't fix this. i've parsed the html source and stripped the code:


<#
.SYNOPSIS
    Sends a UDP datagram to a port
.DESCRIPTION
    This script used system.net.socckets to send a UDP
    datagram to a particular port. Being UDP, there's
if the UDP datagram actually
    was received.
for this sample, a port was chosen (20000).
.NOTES
    File Name  : Send-UDPDatagram
@psp.co.uk
    Requires   : PowerShell V2 CTP3
.LINK
    http://www.pshscripts.blogspot.com
.EXAMPLE
#>

###
#  Start of Script
##

# Define port and target IP address
# Random here!
$Port = 20000
$IP = "10.10.1.100"
$Address = [system.net.IPAddress]::Parse( $IP )

# Create IP Endpoint
$End = New-Object System.Net.IPEndPoint $address , $port

# Create Socket
$Saddrf    = [System.Net.Sockets.AddressFamily]::InterNetwork
$Stype    = [System.Net.Sockets.SocketType]::Dgram
$Ptype     = [System.Net.Sockets.ProtocolType]::UDP
$Sock      = New-Object System.Net.Sockets.Socket $saddrf , $stype , $ptype
$Sock.TTL = 26

# Connect to socket
$sock.Connect( $end )

# Create encoded buffer
$Enc      = [System.Text.Encoding]::ASCII
$Message = "Jerry Garcia Rocks`n" *10
$Buffer   = $Enc.GetBytes( $Message )

# Send the buffer
$Sent   = $Sock.Send( $Buffer )
"{0} characters sent to: {1} " -f $Sent , $IP
"Message is:"
$Message
# End of Script
